Will try it. Thanks very much.
Robin Saacks
TimAc Inc
t 310.571.1200 x21
c 310.709.1358
f 310.234.0100
www.timacinc.com
Business Systems
------Original Message------
Here's a simple script you can test with.

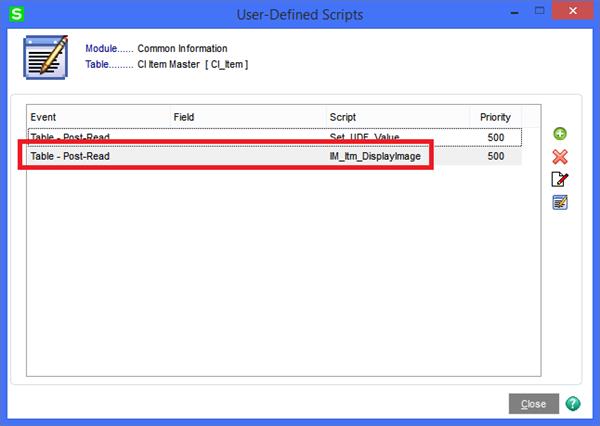

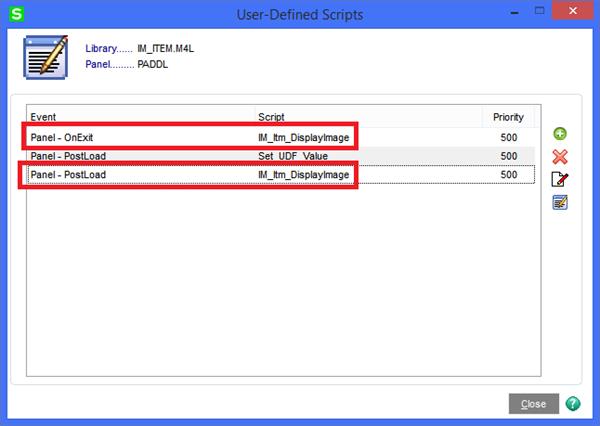

It must be set on the target panel's post load and post exit event as well as the main table's post read event.
I included as many variables as i could to make it easier to move around.

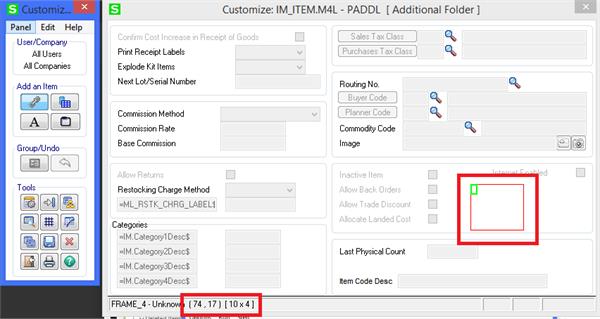

Use Custom Office on the target panel to determine the values to use for the StartingColumn, StartingLine, WidthInColumns, and HeightInLines variables You may need to tweak the StartingLine plus or minus 1-3 to account for folder and tab height.

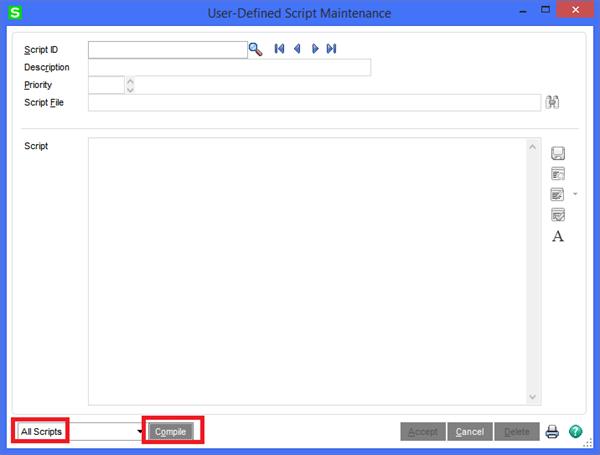

If you need to tweak the StartingLine, make sure you compile All Scripts each time you tweak it before testing with a new instance of the target task after compiling the scripts.
Refer to attached images for examples.
TargetLibrary = "IM_Item.m4l"
TargetPanel = "PADDL"
StartingColumn = 74
StartingLine = 17
WidthInColumns = 10
HeightInLines = 4
EndingColumn = StartingColumn + WidthInColumns
EndingLine = StartingLine + HeightInLines
' Valid Display Modes
' 0 = Align at top left
' 1 = Centre/crop within region
' 2 = Scale to fit
' 3 = Tile bitmaps to fill the given area
' 4 = Half-tone for enhanced legibility (may lighten black images)
' 5 = Scale with proper aspect ratio but output in top left
' 6 = Scale with proper aspect ratio but centred in the region
DisplayMode = 6
If IsObject(oSession) Then
If oScript.UIObj > 0 Then
Set oUIObject = oSession.AsObject(oScript.UIObj)
If UCase(oUIObject.GetScreenName()) = UCase(TargetLibrary) Then
CMD_STR = "XPRINT 'IMAGE'(""ImageFileGroup""),'PICTURE'(@X(" & StartingColumn & "),@Y(" & StartingLine & "),@X(" & EndingColumn & "),@Y(" & EndingLine & "),""""," & DisplayMode & "),'IMAGE'(DELETE ""ImageFileGroup"")"
If InStr(UCase(oScript.GetCurrentProcedure()), UCase("Exit")) = 0 And UCase(oUIObject.GetFolderName()) = UCase(TargetPanel) Then CMD_STR = CMD_STR & "; IF ImageFile$<>"""" THEN PRINT 'IMAGE'(""ImageFileGroup""),'PICTURE'(@X(" & StartingColumn & "),@Y(" & StartingLine & "),@X(" & EndingColumn & "),@Y(" & EndingLine & "),""..\Images\""+%C$+""\""+ImageFile$," & DisplayMode & ") END_IF"
oUIObject.SetVar "CMD_STR$", CMD_STR
End If
Set oUIObject = Nothing
End If
End If
------------------------------
David Speck II
Tennessee Software Solutions
------------------------------
Original Message:
Sent: 02-12-2020 10:35
From: Robin Saacks
Subject: Image embedded in the Item Maintenance Main screen
David,
That is amazing. Thanks very much for explaining this in detail.
Robin Saacks
TimAc Inc
t 310.571.1200 x21
c 310.709.1358
f 310.234.0100
www.timacinc.com
Business Systems
Original Message------

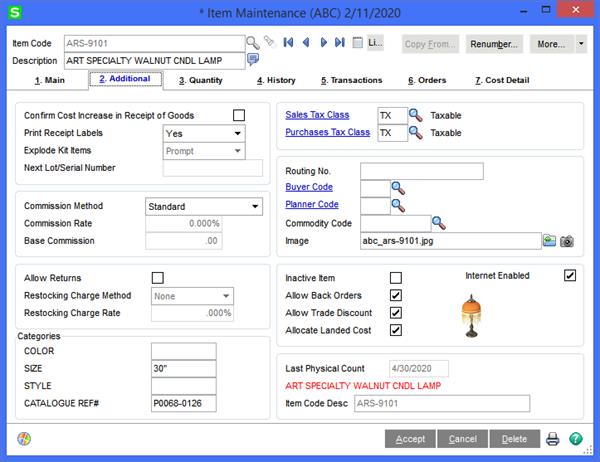

Should be doable with a simple post read event script on CI_Item while checking for the current UI task being Item Inquiry/Maintenance and that you are on the correct tab where you want the image displayed. As long as you know the path to the file name and you have space on the panel, you can use the 'PICTURE' mnemonic using the oScript.Execute method to execute the needed ProvideX code.
https://manual.pvxplus.com/PXPLUS/mnemonics/picture.htm

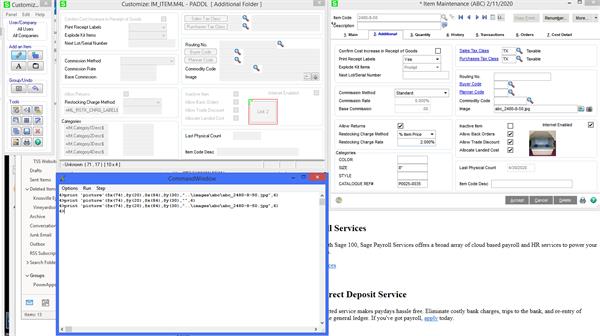

Here's an example of manually executing the code. I used Custom Office to figure out the general line and column to start with and the width and length to add to the line and column. I did have to pad the starting line to account for the folder and tab height. I'll add that i have not tested this extensively and it may need tweaking before it is ready for production use.
When passing ProvideX code to the oScript.Execute method, you have to enclose the entire code in double quotes, any double quotes within the code have to be escaped.
The "6" being passed as the last argument is the scaling mode, refer to the following for possible options.
|
display_opt
|
Numeric code used to define style and alignment for use when displaying graphic. Supported options are:
0 = Align at top-left (See Note below)
1 = Center/crop within region
2 = Scale to fit (See Note below)
3 = Tile bitmaps to fill the given area (See Note below)
4 = Halftone for enhanced legibility (may lighten black images)
5 = Scale with proper aspect ratio but output in top left of region
6 = Scale with proper aspect ratio but centered in the region
7 = Scale picture to completely fill region and center (See Note below) (Added in PxPlus 2019)
Note:
For options 0, 2 and 3:
The image is cropped to fit within the region for the screen and *WINPRT* output. Cropping is not supported with *PDF*; therefore, pictures sent to *PDF* that are larger than their defined region (based on 72 pixels to the inch) will be auto-scaled to avoid displaying outside the defined region.
For option 3 (tiled):
When sending to *PDF*, only images that fit completely inside the region will be output (based on 72 pixels per inch).
For option 7:
Once the image is scaled to cover, any overage is cropped. (This option is not supported for *PDF*, which uses option 6 instead.)
|
------------------------------
David Speck II
Tennessee Software Solutions
------------------------------
Original Message:
Sent: 02-11-2020 08:14
From: Robin Saacks
Subject: Image embedded in the Item Maintenance Main screen
Not a bad idea, but then you'd still have to close the view when done. Would be good if an image can be embedded in the panel itself as a UDF etc. Not sure if this is possible.
Robin Saacks
TimAc Inc
t 310.571.1200 x21
c 310.709.1358
f 310.234.0100
www.timacinc.com
Business Systems
Original Message------
Perhaps a script to launch the view when pressing enter after entering the item code.
------------------------------
Jeff Schwenk
FORMER 90M Board Member
Bottomline Software, Inc.
Waynesboro VA
540-221-4444
------------------------------
